Colors:
Gray and Yellow, Black

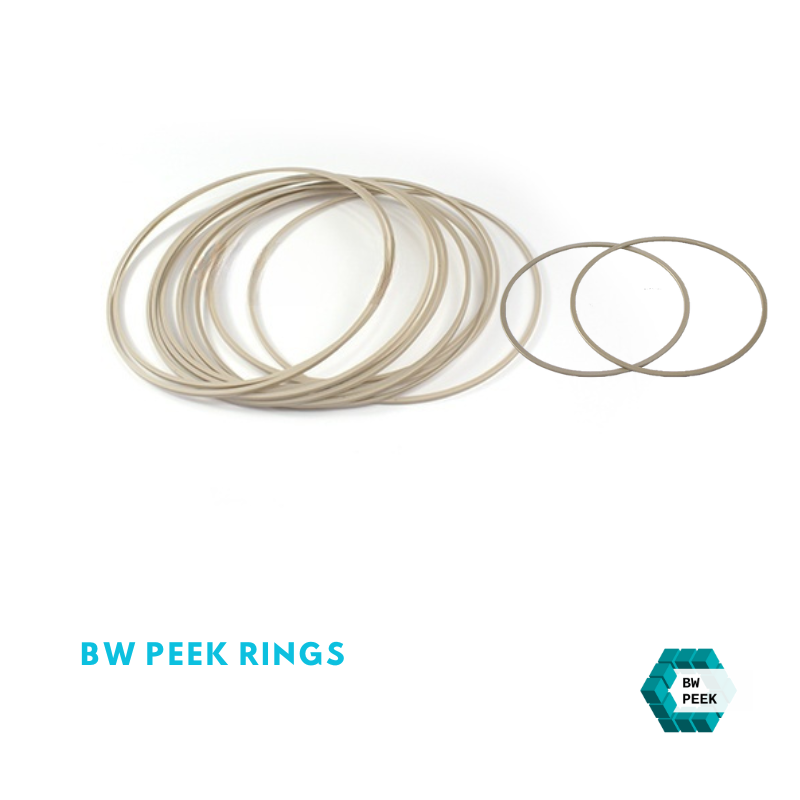

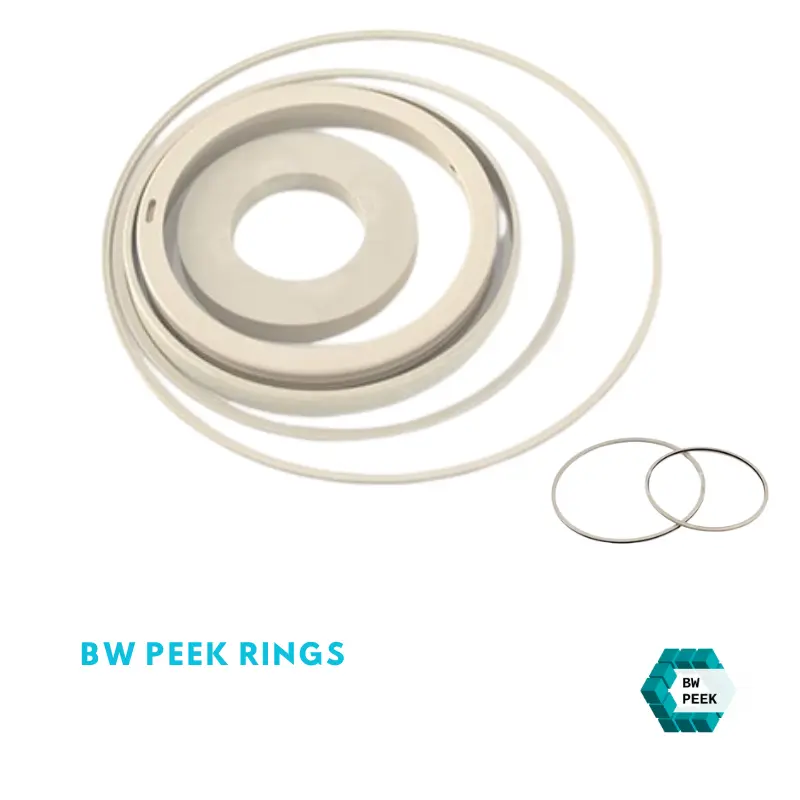

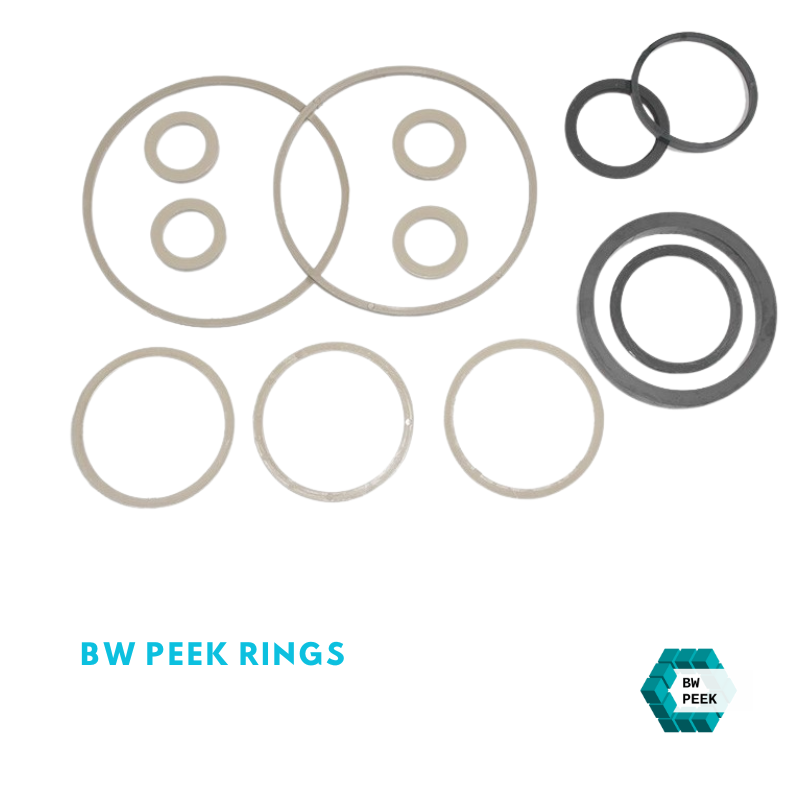

PEEK Seal Ring Advantage:
- Good sealing ring performance
- Dimensional stability
- Specifications accept customization
- High temperature resistance
- Wear-resistant
- Strong mechanical properties
PEEK material properties:
Density: 1.3g/cm³
Water Abs. (25℃.24Hrs)：0.5%
Continuous using temperature：260℃
Rockwell hardness：118HRR
PEEK ring applications:
PEEK O-rings or seals are often used together in high-temperature, high-pressure environments. The selection of O-rings or seals is particularly important in the oil and gas extraction industry, which is often subjected to severe working environments, because PEEK materials are resistant to high temperatures, high pressures, chemicals, and fatigue, and can meet the challenges of complexity and variability.
- Face seals on rotary joints for loading and unloading arm equipment.
- Needle seals for paint valves in painting equipment.
- Shaft and static seals for vacuum pumps.
- Seals for filling valves in breweries and other food-processing industries are used as Better alternatives for hydraulic components such as high-pressure cylinders, low-friction cylinders, steering gears, and shock absorbers.
- Chemical plant equipment and buildings.
- Automotive and aerospace industries.
- Metering devices.
- Process equipment and container manufacturing.
- High wear due to high transverse loads or poor concentric operating conditions.
Raw material: PEEK granule, learn more about PEEK ring Simulation and Experimental
